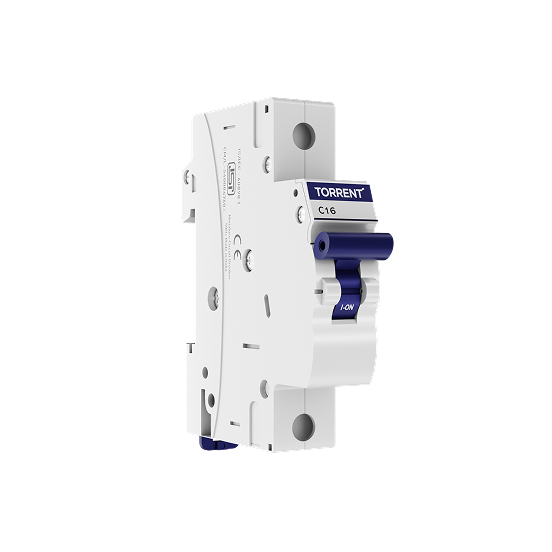

An MCB switch is an essential electrical safety device that protects circuits from overloads and short circuits. It helps provide safe and reliable power in homes and businesses.

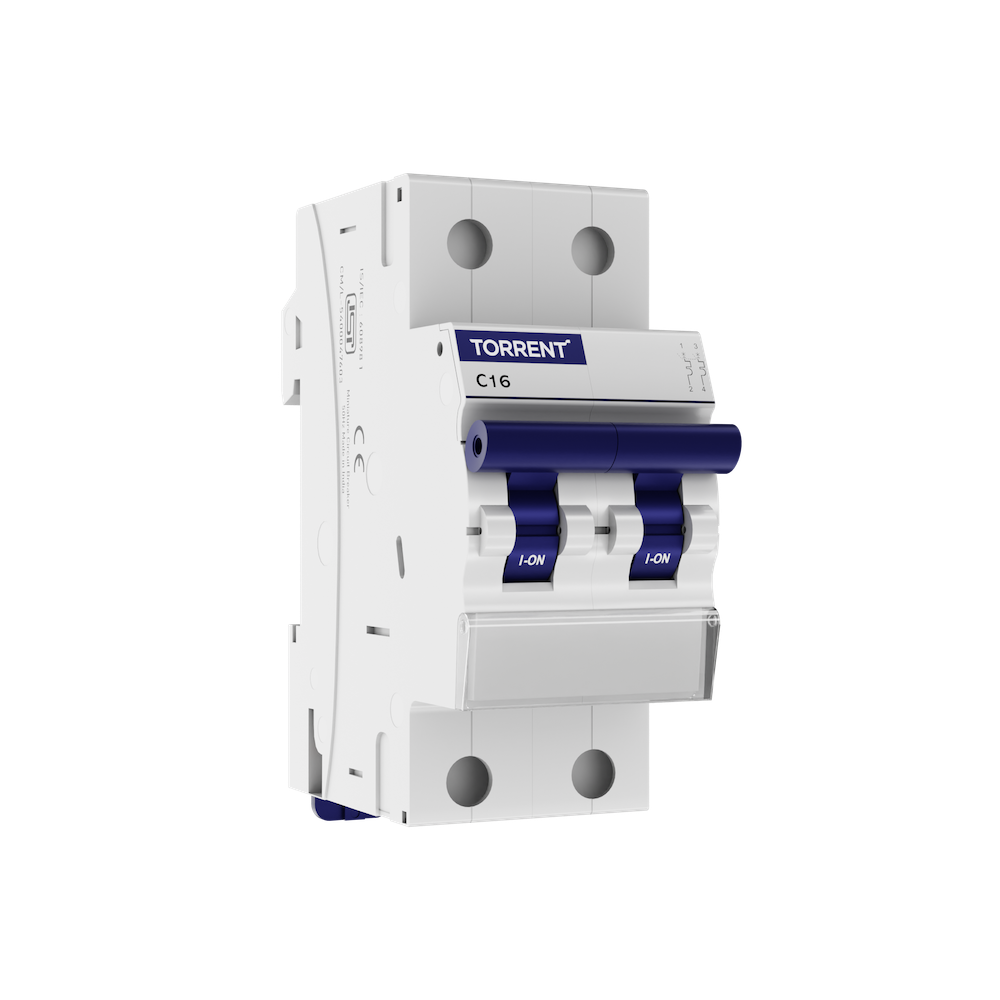

Torrent Electricals offers a dependable range of miniature circuit breakers that can handle fault currents of 6kA and 10kA. They come in different configurations like SP, DP, TP, TPN, SPN and FP, with current ratings from 6 to 63 amps, providing accurate protection and steady performance.
Designed for applications such as air conditioners, pumps, motors and lighting systems, Torrent Electricals’ MCBs deliver dependable protection, durability and safety in modern electrical installations.
Certifications
Torrent Electricals Ltd. ISO45001
Torrent Electricals Ltd. ISO14001
Torrent Electricals Ltd. ISO9001
Standards
IEC 60898-1
7 Years Warranty*

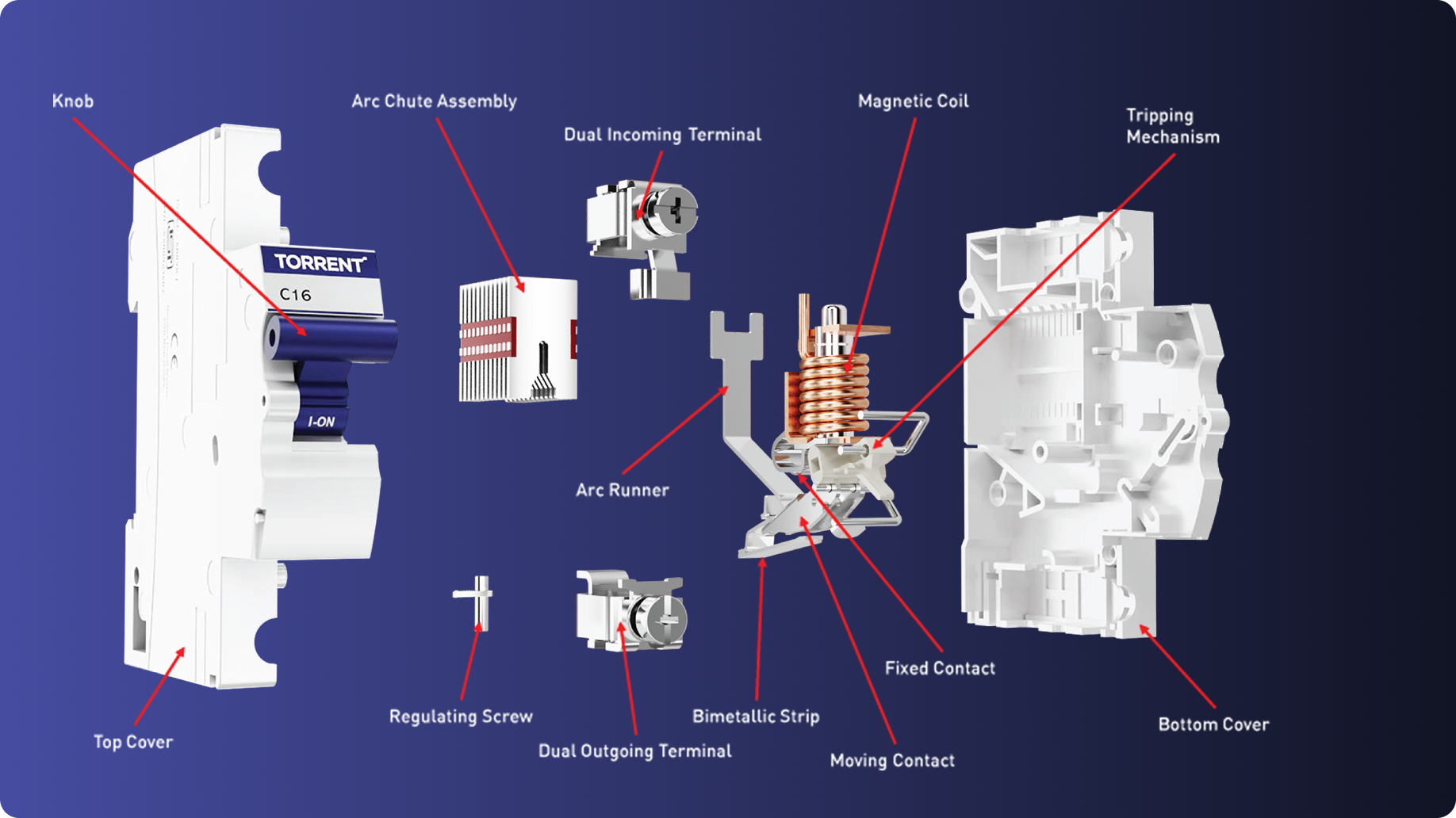

Cross Sectional View
| CHARACTERISTICS | TEL MCB |
|---|---|
| Standard Conformity | IS/IEC60898-1 |
| Type | C Curve |
| Rated Current (In) | 6-63A |
| Rated Voltage AC (Ue) | 240/415V |
| Rated Frequency Hz | 50 Hz |
| No of Poles | SP, SPN, DP, TP, TPN, & FP |
| Rated Short Circuit Breaking Capacity | 6kA, 10kA |
| Rated Insulation Voltage (Ui) | 660V |
| Magnetic Release Setting | 5-10In |
| Rated Impulse Voltage (Uimp) | 4kV |
| Electrical Life / Mechanical Life | 6000 |
| Working Ambient Temperature | -5°C to 55°C |
| Energy Limiting Class | ELC 3 |
| Mounting | DIN rail Size 35 mm |
| Line Terminal Capacity | Up to 35 mm² |
| Degree of Protection | IP 20 |
| Resistance to Shock | 40 mm free fall |
| Ambient Reference Temperature | 30°C |
| Installation Position | Vertical/Horizontal |
| Humidity | 95% RH |
| Dielectric strength | 2 kV |
| Tightening Torque | 2 Nm |
| Case and Cover | Flame Retardant Thermoplastic |
Salient Features
Trip Free Mechanism
Two Position Dolly
Energy Efficient
Air Circulation
Arc Quenching
Padlocking Facility
Label Holder
