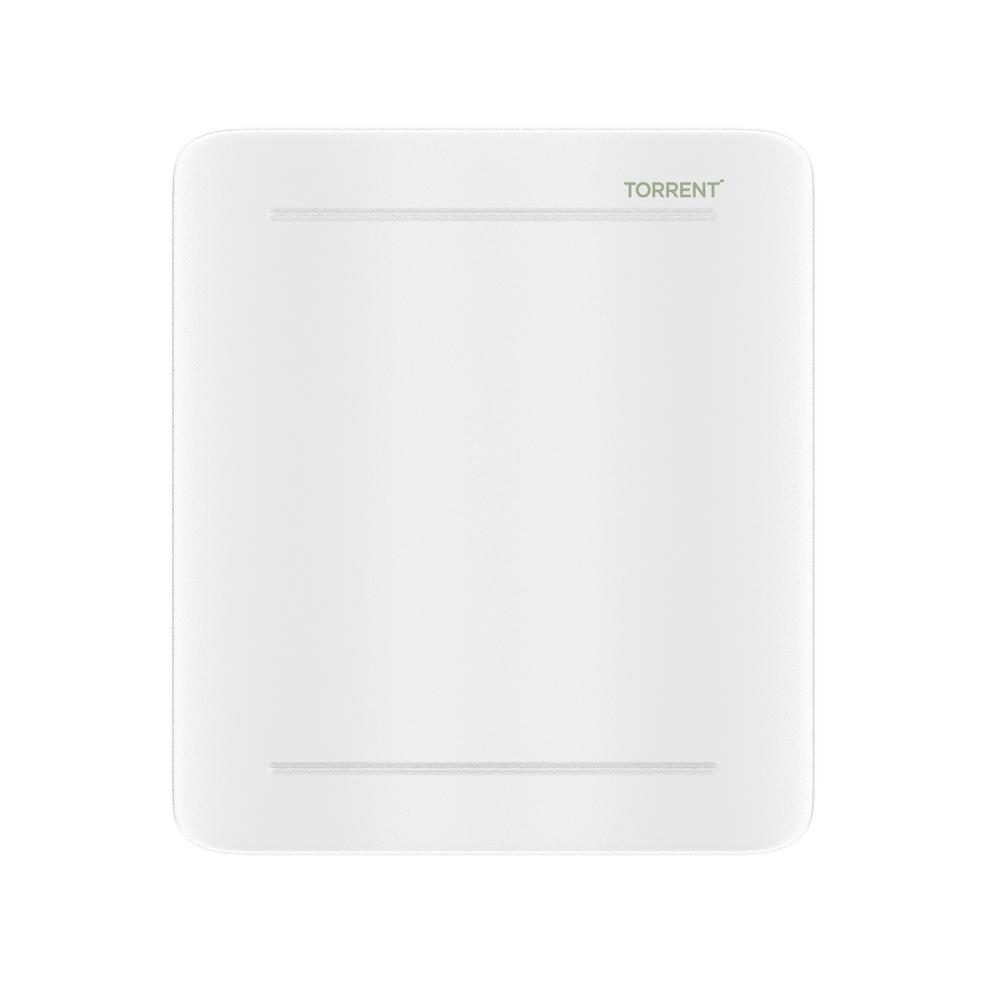

Torrent Electricals offers robust Mivan Distribution Boards engineered to meet the demanding electrical requirements of modern construction projects. The SPN Mivan Double Door Distribution Box and TPN Mivan Double Door Distribution Box are specially designed for seamless integration with Mivan formwork structures, ensuring safe and organized power distribution in residential and commercial buildings.
Built using high-quality enclosures and precision-engineered components, Torrent Electricals Mivan DB solutions provide enhanced protection, durability, and ease of installation. The double-door design allows convenient access for maintenance while maintaining electrical safety and compliance with industry standards. Suitable for high-rise buildings, infrastructure projects, and large housing developments, these distribution boards support reliable load management and long-term performance in demanding environments.
Certifications

Torrent Electricals Ltd. ISO45001

Torrent Electricals Ltd. ISO14001

Torrent Electricals Ltd. ISO9001
Standards

IEC 61439-3
Technical Specifications
| CHARACTERISTICS | TEL DBs |
|---|---|
| No. of Ways | 6, 8, 12, 16 ways (SPN), 4, 6, 8 ways (TPN) |
| Type of Installation | Flush mounting |
| Doors and IP Rating | Double (IP42) |
| Door Options | Reversible for Double Door |
| Door Locking Option | Snap fit for Mivan as well |
| Removable Gland Plates | Top and Bottom |
| Impact Protection | IK09 (Double Door) |
| Busbar Rating | 63A |
| Voltage Rating | 240 / 415V AC |
| Incoming Options | MCB / RCCB / Isolator |
| Outgoing Option | Single Pole MCB |
| Neutral Bar Terminal Size | 28 sq. mm |
| Earthing Bar Terminal Size | 28 sq. mm |
| Dielectric Strength | 2.5 kV |
| Operating Temperature Range | -5 to 55°C |
| Box Thickness | 1.6 mm |
| Color | White |
| Reference Standard | IS/IEC 61439-3 |
