An isolator switch is a safety device used to manually turn off electrical circuits during maintenance or emergencies. Torrent Electricals offers a comprehensive range of electrical isolators made for safe disconnection and reliable use in homes, businesses and factories. Manufactured using high-quality materials and precision-engineered components, these isolators are designed to support efficient circuit isolation across a wide range of electrical applications.

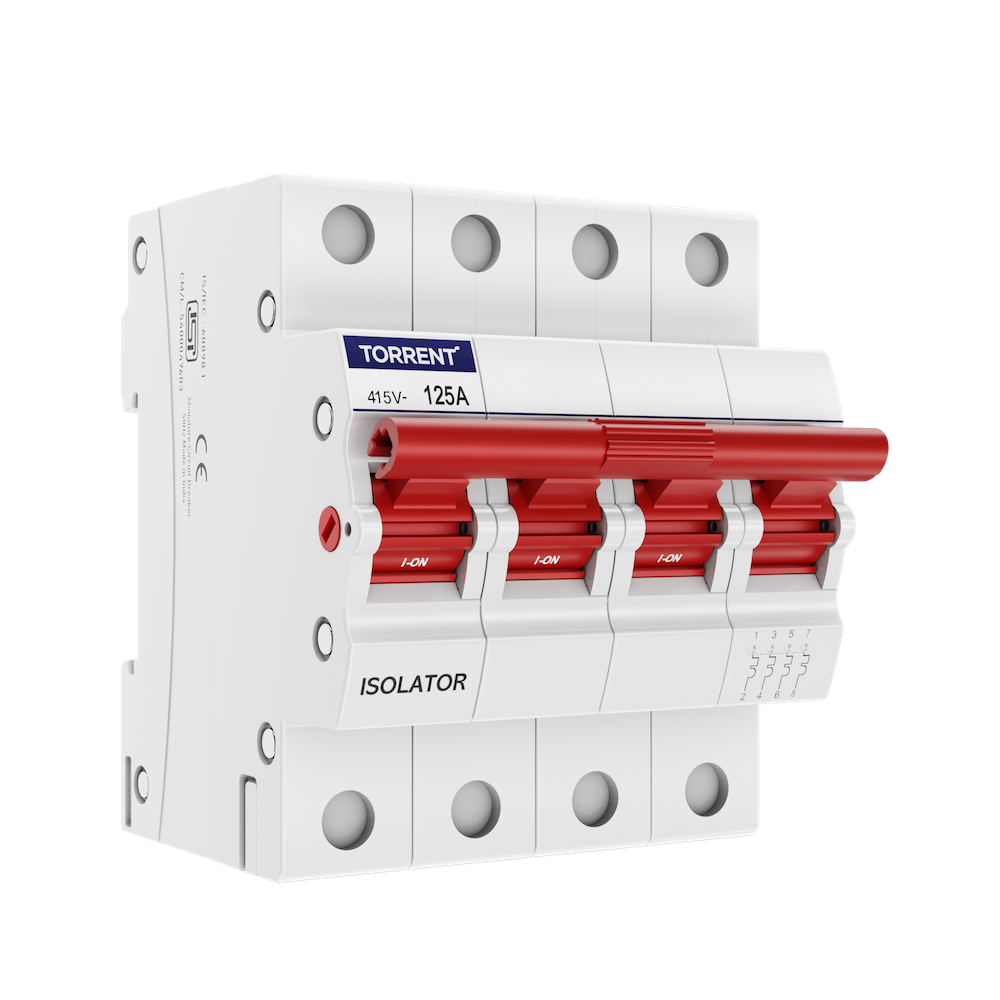

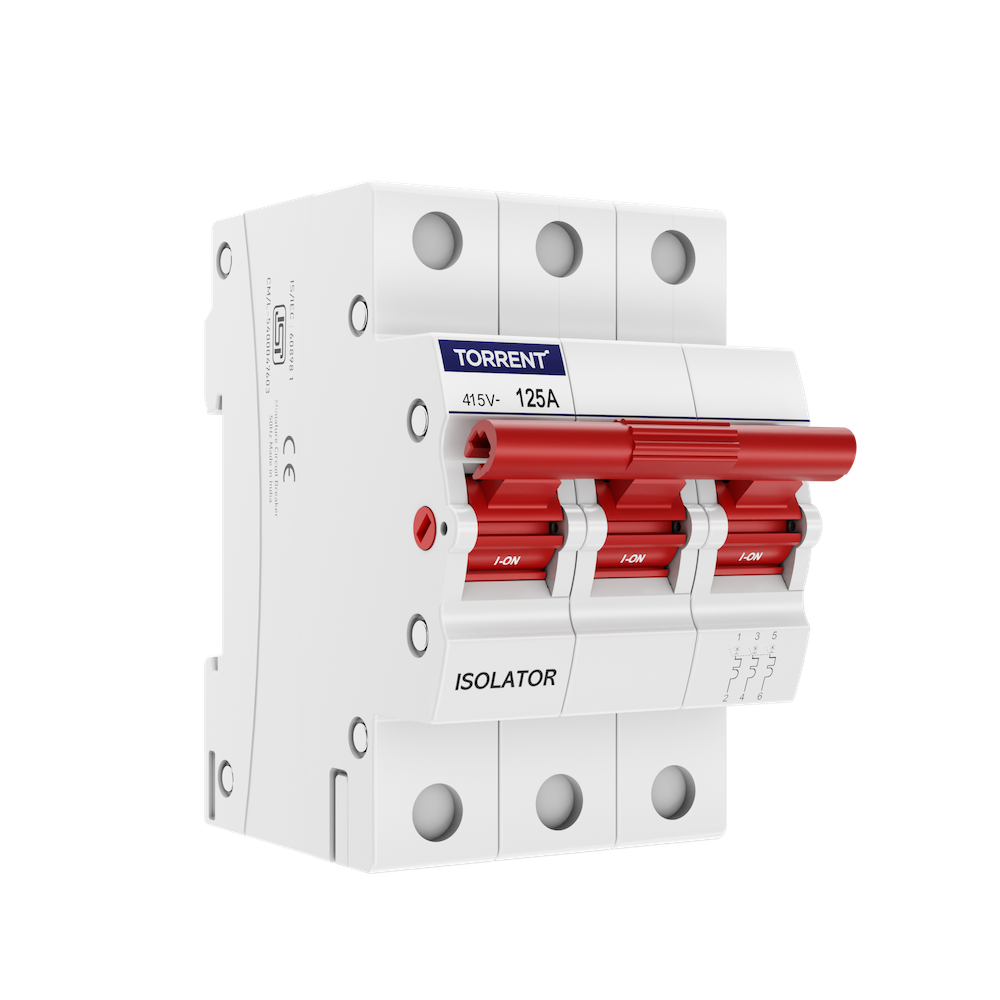

These electrical isolator switches come in Double-Pole, Triple-Pole, and Four-Pole types and can handle currents up to 125A. They are designed to handle electrical loads effectively and operate smoothly. With strong contacts, features to control electrical sparks and easy-to-use designs, they deliver reliable performance and long-term durability across various electrical setups.
Certifications
Torrent Electricals Ltd. ISO45001
Torrent Electricals Ltd. ISO14001
Torrent Electricals Ltd. ISO9001
Standards
IEC 60947-3
2 Years Warranty
Technical Specifications
| CHARACTERISTICS | TEL MCB |
|---|---|
| Standard Conformity | IS/IEC60947-3 |
| Rated Current (In) | 40-125A |
| Rated Voltage AC (Ue) | 240/415V |
| Utilization Category | AC22A |
| Rated Frequency Hz | 50 Hz |
| No of Poles | 2P, 3P, 4P |
| Rated Insulation Voltage (Ui) | 660V |
| Rated Impulse Voltage (Uimp) | 6kV |
| Electrical Life / Mechanical Life | 10000/10000 |
| Working Ambient Temperature | -5°C to +55°C |
| Line Terminal Capacity | Up to 35 mm² |
| Degree of Protection | IP 20 |
| Resistance to Shock | 40 mm free fall |
| Ambient Reference Temperature | 30°C |
| Installation Position | Vertical/Horizontal |
| Rated Short Time withstand Current ICW (kA) | 300A for 25A, 1500A for 125A (1 sec) |
| Rated Short Circuit Making Capacity (lcm) (kA) | 500A for 25A & 2200A for 125A |
| Vibration | 3g |
| Case and Cover | Flame Retardant Thermoplastic |
Salient Features
Trip Free Mechanism
Two Position Dolly
Energy Efficient
Air Circulation
Arc Quenching
Padlocking Facility
Label Holder
