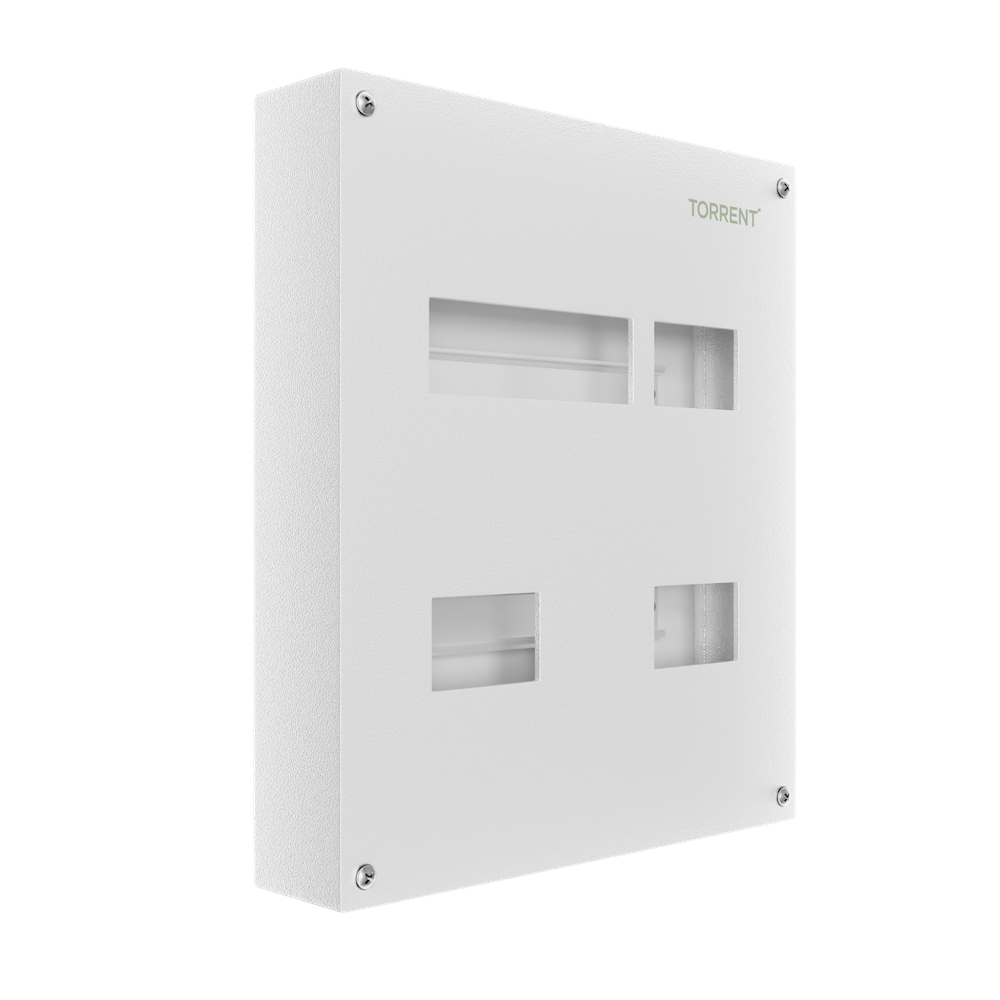

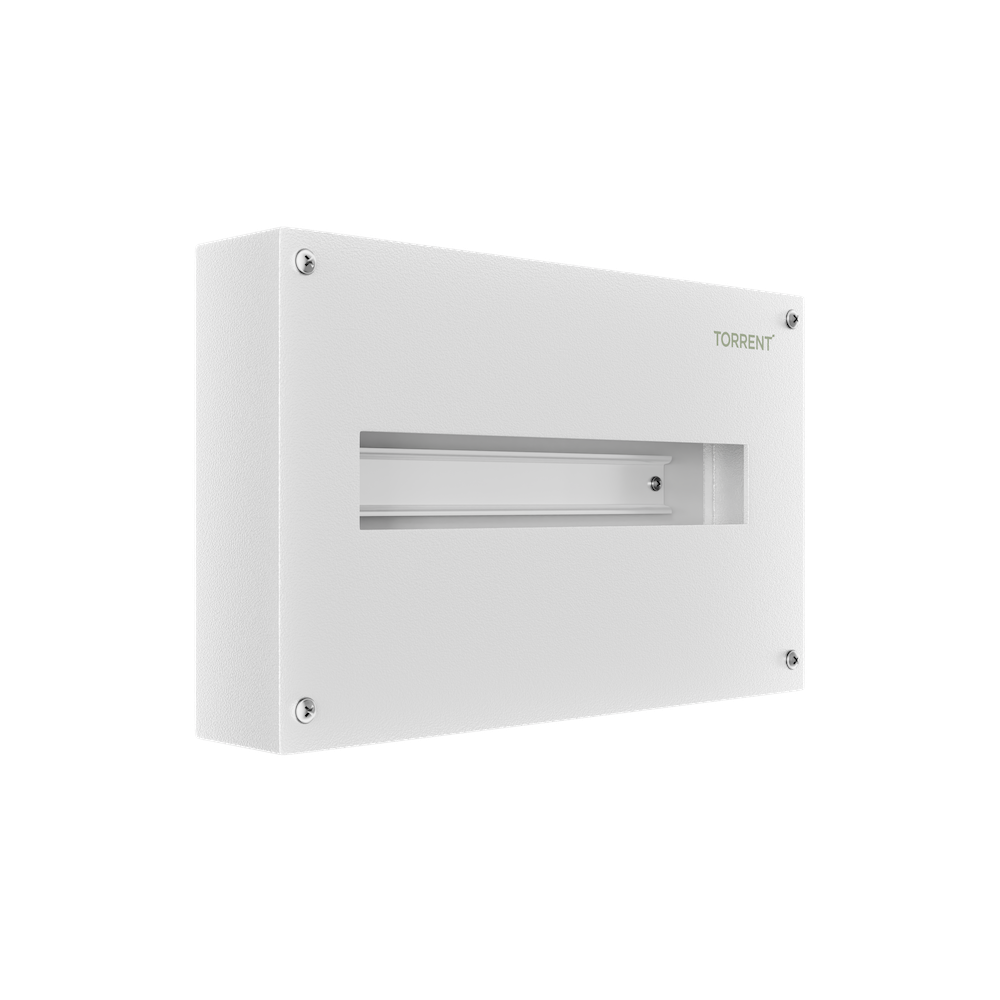

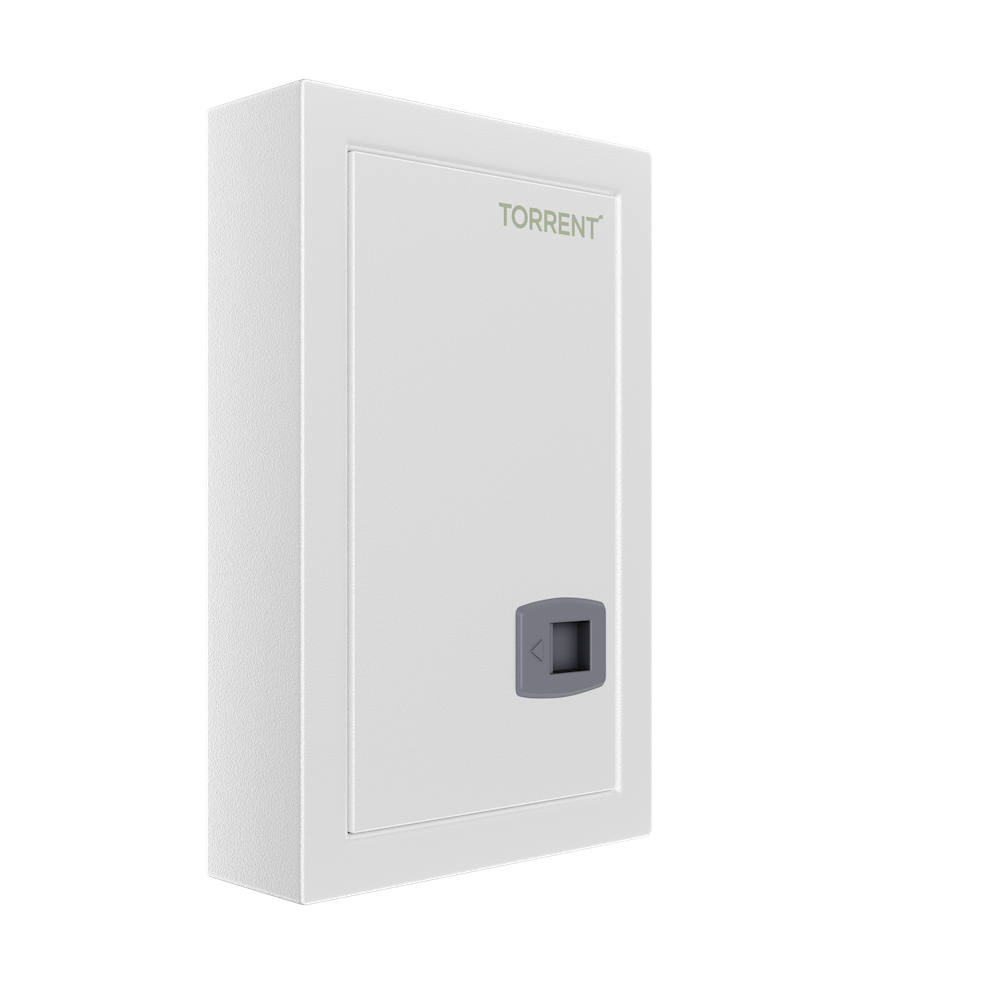

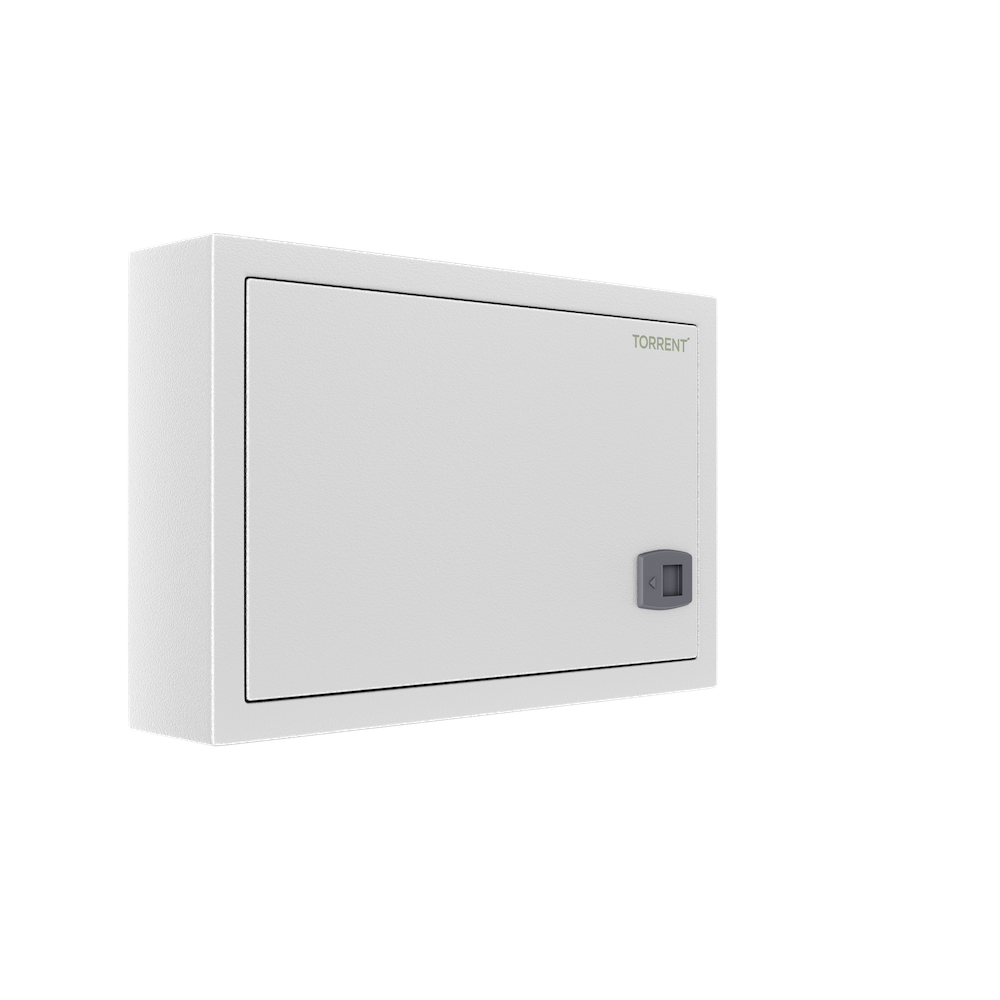

TeX Distribution Boards by Torrent Electricals are designed for safe, organized, and efficient power distribution across residential and commercial installations. These high-quality Distribution Boxes offer strong protection, neat wiring layout, and long-lasting performance.
The TeX range includes SPN DB options such as SPN Single Door Distribution Boards for compact applications, along with TPN DB and TPN Double Door Distribution Boards for higher electrical loads. Built with durable enclosures and user-friendly design, TeX distribution boards ensure reliability, safety, and easy maintenance in modern electrical systems.
Certifications
Torrent Electricals Ltd. ISO45001
Torrent Electricals Ltd. ISO14001
Torrent Electricals Ltd. ISO9001
Standards
IEC 61439-3
Technical Specifications
| CHARACTERISTICS | TEL DBs |
|---|---|
| No. of Ways | 4, 6, 8, 12, 16 (SPN), 4, 6, 8, 12 (TPN) |
| Type of Installation | Surface and Flush mounting |
| Doors and IP Rating | Single (IP30), Double (IP42) |
| Door Options | Reversible for Double Door |
| Door Locking Option | Snap Fit (Sliding Lock) |
| Removable Gland Plates | Top and Bottom |
| Impact Protection | IK08 (Single), IK09 (Double) |
| Busbar Rating | 63A |
| Voltage Rating | 240 / 415V AC |
| Incoming Options | MCB / RCCB / Isolator |
| Outgoing Option | Single Pole MCB |
| Neutral Bar Terminal Size | 28 sq. mm |
| Earthing Bar Terminal Size | 28 sq. mm |
| Dielectric Strength | 2.5 kV |
| Operating Temperature Range | -5 to 55°C |
| Box Thickness | 1 mm |
| Color | White |
| Reference Standard | IS/IEC 61439-3 |
