An electrical distribution board (DB) is a main unit that controls and sends power to different circuits in a building. Made for safety, order, and efficiency, it makes sure electricity is supplied carefully while protecting circuits from excessive power.

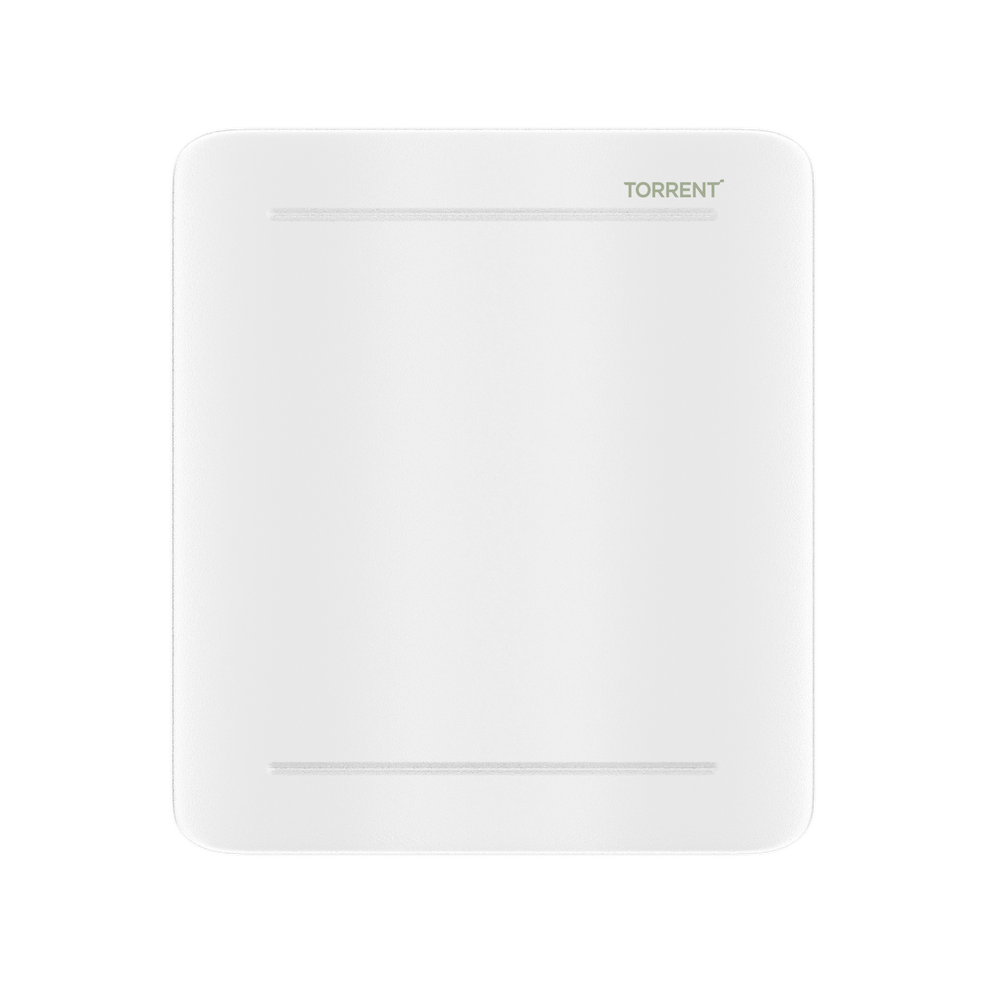

Torrent Electricals offers a wide range of electrical distribution boards made for homes, businesses and factories. Carefully designed and made with high-quality materials, each panel meets today’s power needs while ensuring safety and lasting performance.
| CHARACTERISTICS | TEL DBs |
|---|---|
| No. of Ways | 4, 6, 8, 12, 16 (SPN), 4, 6, 8, 12 (TPN) |
| Type of Installation | Surface and Flush mounting |
| Doors and IP Rating | Single (IP30), Double (IP42) |
| Door Options | Reversible for Double Door |
| Door Locking Option | Snap Fit (Sliding Lock) |
| Removable Gland Plates | Top and Bottom |
| Impact Protection | IK08 (Single), IK09 (Double) |
| Busbar Rating | 63A |
| Voltage Rating | 240 / 415V AC |
| Incoming Options | MCB / RCCB / Isolator |
| Outgoing Option | Single Pole MCB |
| Neutral Bar Terminal Size | 28 sq. mm |
| Earthing Bar Terminal Size | 28 sq. mm |
| Dielectric Strength | 2.5 kV |
| Operating Temperature Range | -5 to 55°C |
| Box Thickness | 1 mm |
| Color | White |
| Reference Standard | IS/IEC 61439-3 |
Salient Features
Locking Mechanism
No Accidental Contact With Live Parts
.png)
Ingress Protection (IP42)
Cement Spill Protector
Effective earthing for complete protection
