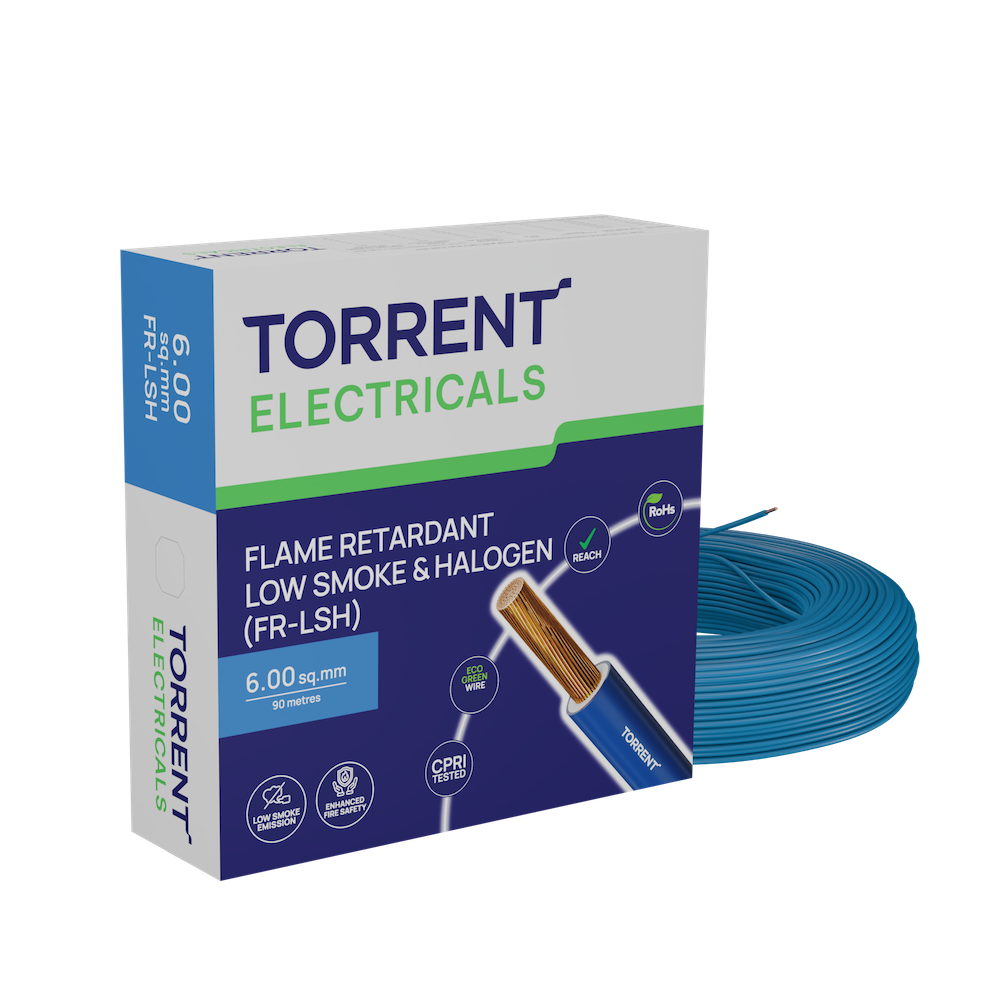

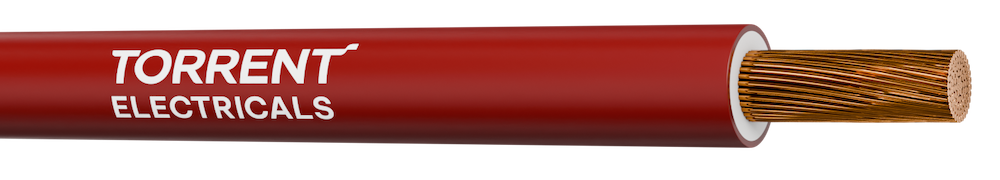

Flame Retardant Low Smoke Halogen (FRLSH) wires are designed to reduce flame spread while limiting smoke emission during a fire. With advanced insulation that resists ignition, these wires provide enhanced protection in fire-sensitive environments such as residential buildings, commercial complexes, and industrial facilities.
Built to meet strict safety standards, FRLS wires help improve visibility during emergencies and reduce the impact of smoke in enclosed spaces. They deliver dependable electrical performance under varying operating conditions while supporting safer wiring installations.
FRLSH wires are widely used in modern electrical systems where safety, reliability, and reduced smoke generation are important. They help protect both people and equipment by improving fire safety in environments where emergency response and evacuation can be critical.
Salient Features
Low Smoke and Low Halogen
Significantly reduces toxic gas emissions and smoke during fire emergencies, ensuring better visibility and fostering safer environments for everyone involved.
Flame Retardant
Crafted with advanced FR-LSH PVC insulation, these wires actively prevent fire propagation, ensuring enhanced safety and reliability in critical situations.
101% Copper Conductivity
Crafted from pure ETP-grade annealed copper with 99.97% purity, this material offers exceptional conductivity, resulting in superior energy efficiency, minimized losses, and consistent performance.
Anti-Termite and Anti-Rodent
Featuring specialized insulation, these wires effectively repel rodents and termites, ensuring long-lasting performance and lower maintenance costs. The anti-termite/rodent feature is applicable for 12 months from the invoice date.
RoHS Compliant - Eco-friendly
These wires are RoHS-compliant according to EU Directive (2015/863) and are free from hazardous substances such as lead and mercury. Made with eco-friendly materials, they ensure safety for human health while promoting a sustainable and greener environment.
| Nominal Cross Sectional Area | No. of strands/Max. dia. of each strand | Nominal Insulation Thickness | Max. Overall Diameter | Maximum DC Conductor Resistance at 20°C | Current Carrying Capacity (2 cables in single phase) | |
|---|---|---|---|---|---|---|
| Bunched and Enclosed in Conduit or Trunking | Clipped Direct to a Surface or on a Cable Tray, Bunched and Unenclosed | |||||
| 1 | 14/0.31 | 0.70 | 3.20 | 18.1 | 14 | 15 |
| 1.5 | 22/0.31 | 0.70 | 3.30 | 12.1 | 17 | 19 |
| 2.5 | 36/0.31 | 0.80 | 4.60 | 7.41 | 21 | 25 |
| 4 | 56/0.31 | 0.80 | 4.80 | 4.95 | 26 | 32 |
| 6 | 84/0.31 | 0.80 | 5.30 | 3.30 | 33 | 38 |
